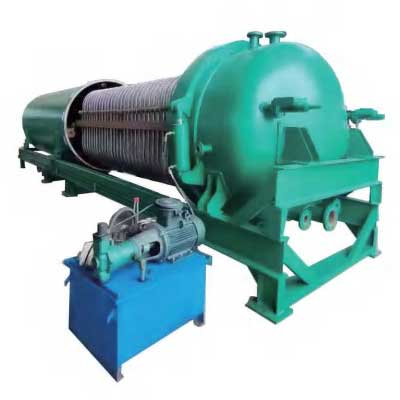

Horizontal Pressure Leaf Filter
Horizontal Pressure Leaf Filter Factory Supply

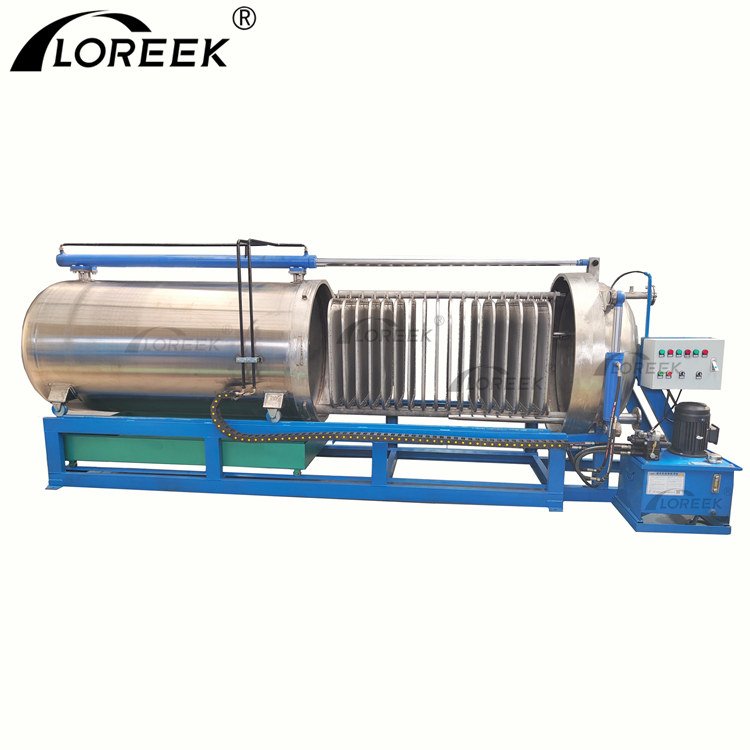

HPLF Series horizontal plate type closed filter (horizontal pressure leaf filter) is a high-efficiency, energy-saving, automatic airtight filtration precision clari-fication equipment, which is developed by our company based on years of experience and advanced technology introduced from the Netherlands.
The Loreek Horizontal pressure leaf filter is widely used for the recovery of dry filter cake, semi-dry filter cake and clarified filtrate, as well as crude oil filtration, molten sulfur, dewaxing, decolorization, degreasing, etc.
Horizontal Pressure Leaf Filter Features
Closed filtration, environmental protection and no pollution.
Filter plates are automatically pulled out of the structure for easy inspection and observation. Double-sided filtration, large filtering area and large slag capacity.
Hydraulic control, automatic operation.
Tank pull-open design, no risk of liquid leakage in the pipeline.
Large-capacity, large-area filtration system can be designed

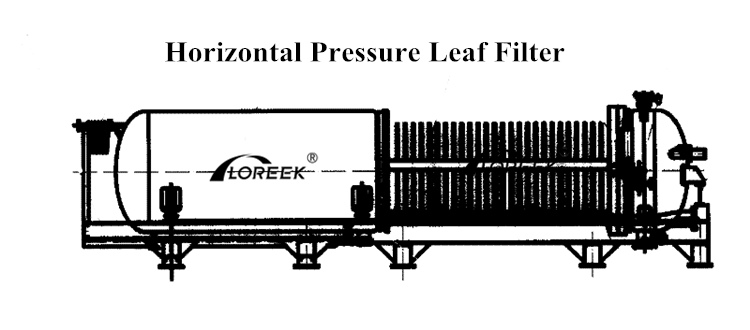

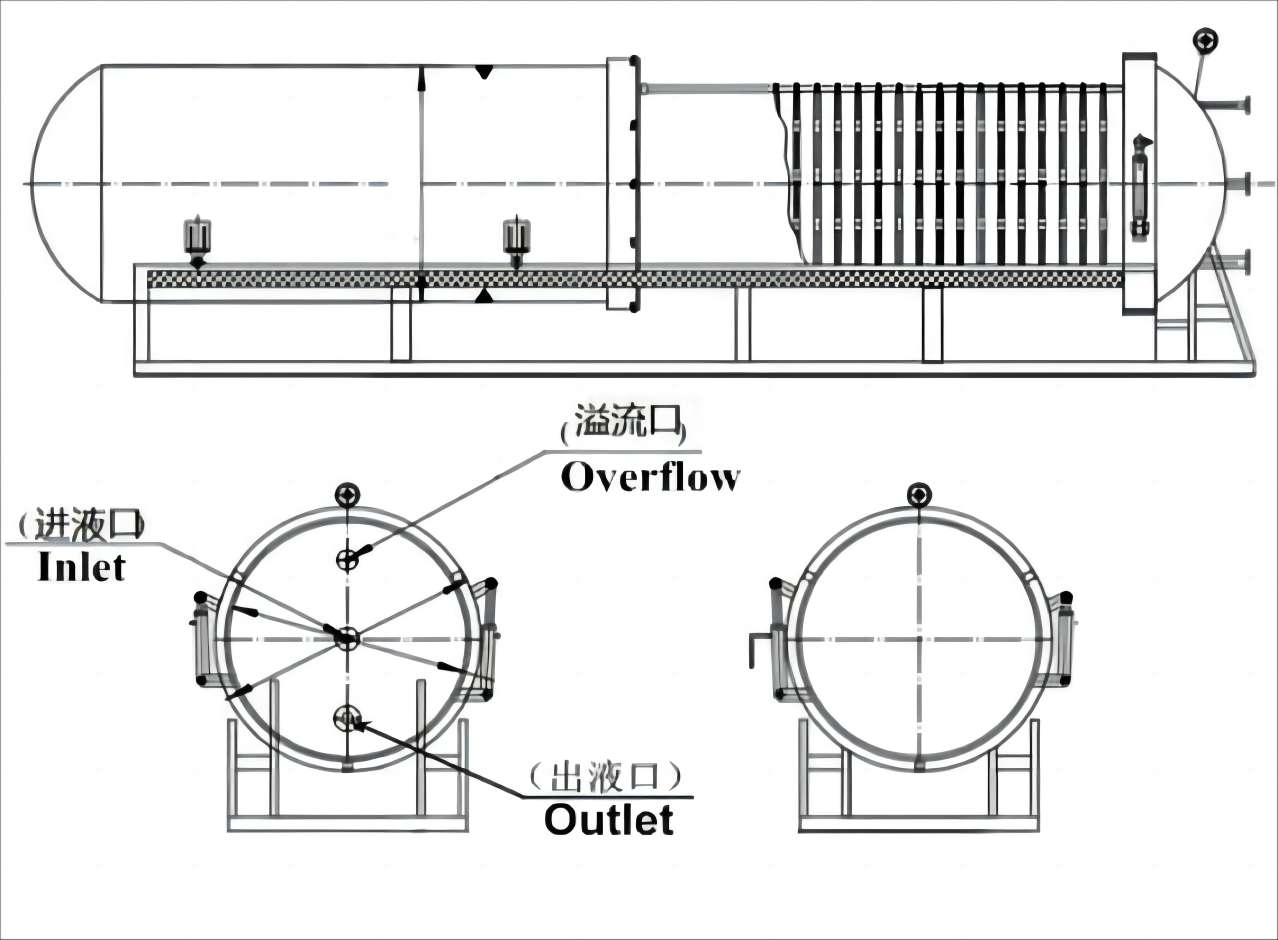

Horizontal Pressure Leaf Filter Structure
Horizontal Pressure Leaf Filter Technical Parameters
| Area (m2) | Vessel Diameter
(mm) |
Work
Pressure (Mpa) |
Temperature (℃) | Processing Capacity(T/ h . m2) | |
|
HPLF4-500 |
600-2500 |
≤0 . 4 | ≤150 | Oil |
0 . 22 |
|
Drinks |
0 . 83 |
||||
|
Resin |
0 . 75 |
||||
Pressure Leaf Filter Leaf Plates Manufacturing
Pressure Leaf Filter Leaves Elements
Loreek manufactures all kinds of vertical and horizontal typical pressure leaf filter elements, which is also called filter leaf. Filter leaf usually consists of 7 layer,5 layers or 3 layers (ply) of stainless steel wire mesh, binder, nozzle, handle, etc.The 5 layers of metal mesh are 2 layers of dense filter mesh on the surface, 2 layers of support mesh in the middle and 1 layer of drainage mesh in the innermost layer.
The leaf closure can be riveted, spot welded, bolted, or a combination of the above.
Construction Standards and Mesh Parameters
Pressure Leaf Filter Leaf Plates Features and Advantages
All sizes and shapes available
Stainless steel 304(L), 316(L), 317(L),904L or super duplex. Other alloy materials on request.
Leafs engineered for balance and tension
Exceptional dimensional stability
Available in different mesh types and layer combinations Extensive range of reinforced frame types with riveted, welded or bolted box profiles suited to the application High filtration efficiency, filtrate quality and flux rates
Five layers (ply) of stainless steel wire mesh design The top layer of the screen can be customized to the application

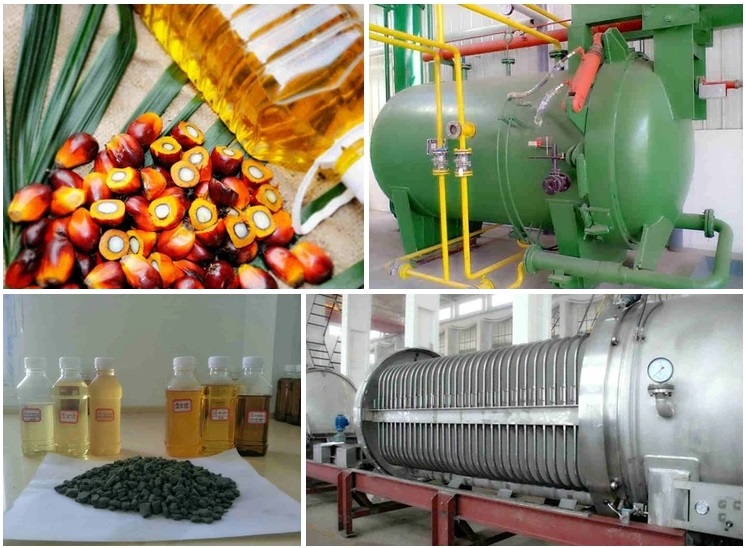

Horizontal Pressure Leaf Filter Working process applications
Pressure Leaf Filter Leaf Plates Data
| Construction | Mesh | Wire Thickness
mm |
Micron Rating |
| 1Ply of drainage mesh | Plain Weave 4×4 | 1.6 | 4750 |
| 2Ply of support mesh | Plain Weave 8×8 | 0.7 | 2470 |
| Plain | |||
| Weave 60 | 0.19 | 250 | |
| mesh | |||
| Plain | |||
| 2Ply of filter | Dutch | 0.35/0.25 | 125 |
| mesh | Weave | ||
| Reversed | |||
| Dutch
Weave, |
0.2/0.4 | 80 | |
| PZ80 |
Loreek Machinery is an experienced pressure leaf filter factory manufacturer and supplier in China. We only do the solid liquid filtration and separation equipments and solutions accumulated a lot of filtration industry experience and production and processing technology.
Welcome to Contact Us for selecting the most suitable and right type of pressure leaf filters.
